Picking the Bus for a 0.78-Inch OLED in Coffee Machines and Appliances
Appliance controllers already drive heaters, pumps, sensors and safety interlocks, so the display must fit into that busy, cost-sensitive design without adding risk. A 0.78-inch monochrome OLED with a 128x80 resolution and both SPI and I2C interfaces lets the designer choose the bus that matches the controller's spare pins and the panel's cable run. For appliances the right answer is usually the simpler, more serviceable bus rather than the faster one, because the display updates are small and infrequent.

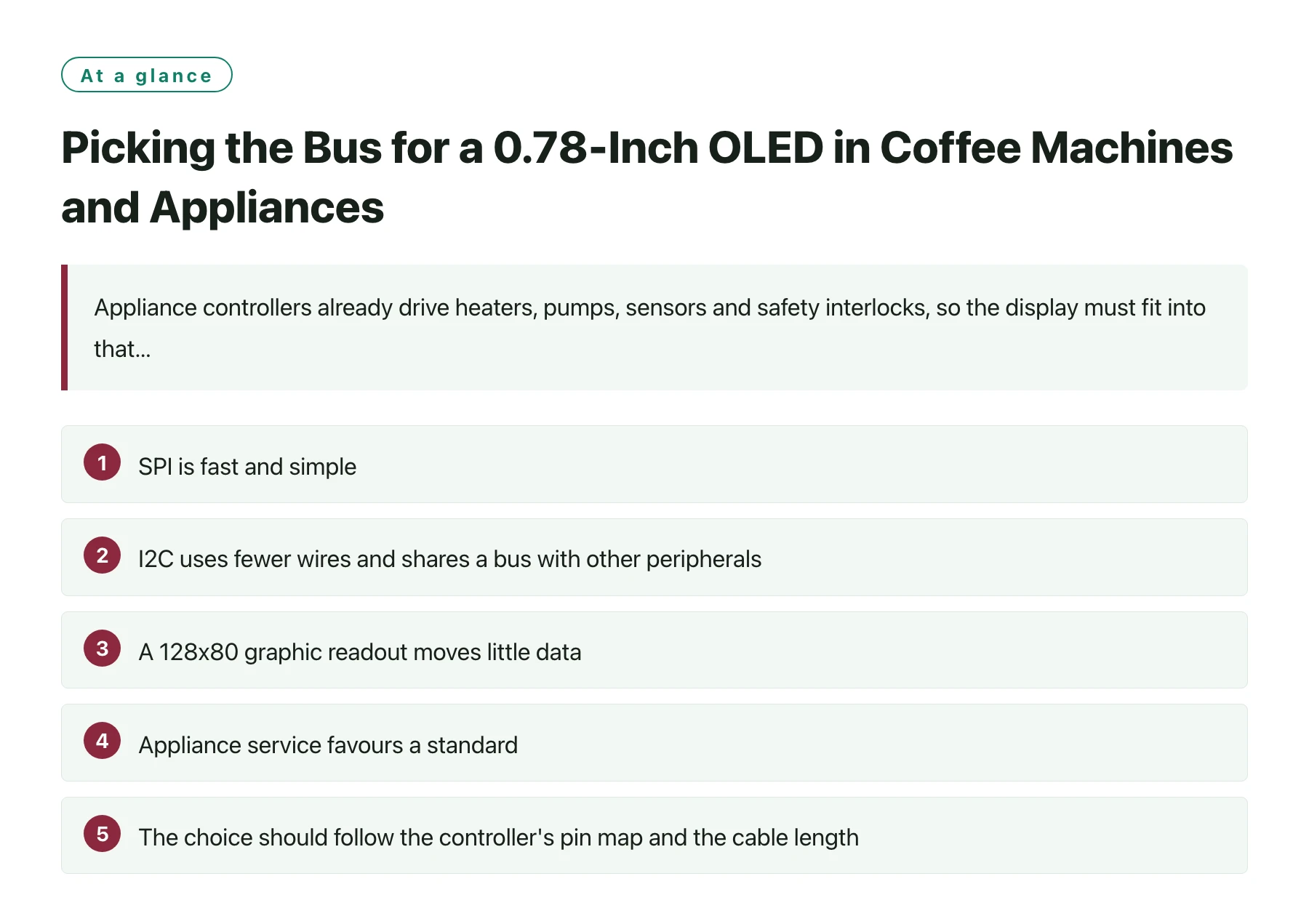

Key takeawaysSPI is fast and simple, good for a short run with free chip-select and clock lines [1]. · I2C uses fewer wires and shares a bus with other peripherals, which helps a crowded appliance controller [2]. · A 128x80 graphic readout moves little data, so neither bus is taxed and speed is not the deciding factor [3]. · Appliance service favours a standard, well-understood bus that any technician can bring up. · The choice should follow the controller's pin map and the cable length, not a generic preference for speed.
In an appliance the display is a small peripheral on a board that is doing far more important things. The bus it uses should reduce the load on that board, not demonstrate bandwidth the application cannot use. A coffee machine does not refresh a 128x80 readout at video rates; it updates a status or a prompt occasionally.
Offering both SPI and I2C on the same panel is genuinely useful, because it lets the layout follow the controller instead of forcing the controller to follow the display. The decision becomes a matter of pins, cable and service, not of which bus is technically superior.
This article compares the two buses for an appliance context, explains when each fits, and argues for the choice that keeps the field team and the bill of materials happiest.
SPI or I2C: fit to the board
SPI pushes a bitmap with minimal protocol, which is ideal when the controller has a free chip-select and the display sits close by on the door or front panel. The firmware is straightforward and the timing predictable.
I2C uses just two lines and addresses devices on a shared bus, which is attractive when the controller is pin-starved or already runs an I2C bus with other peripherals. The cost is a little more protocol handling and the discipline of a clean shared bus.
For an appliance, the deciding questions are concrete: does the board have a spare chip-select and a short run, or a spare I2C address and a tight pin map? The answer picks the bus.
Bus fit for an appliance panel
| Interface | Wires | Best fit | Trade-off |
|---|---|---|---|
| SPI | Clock, data, CS | Short run, free pins | More wires, point-to-point |
| I2C | Clock, data | Crowded controller, shared bus | Slower, bus care needed |
| RGB/MCU | Parallel | High fill rate | Many lines, unnecessary here |
| MIPI DSI | High-speed serial | Large high-res panels | Complex, overkill at 128x80 |
Serviceability beats bandwidth
An appliance is serviced in the field by technicians who may not be display specialists. A standard SPI or I2C routine that any competent firmware person can bring up is worth more than an exotic interface that only the original designer understands.
This is why DisplayModule displays in this size are offered with both SPI and I2C: the flexibility lets the production design follow the controller and keeps the service path simple, rather than committing the whole appliance to one bus for no functional gain.
For a cost-sensitive, long-lived appliance, the bus that reduces risk and supports the field team is the correct engineering choice, even if a faster option exists on paper.
The bus decision also shapes how the appliance is commissioned and updated in the field. A display that sits on a standard SPI or I2C bus can be exercised by the same bring-up routine used for the other peripherals, so a service technician with the controller's toolchain can verify it without special equipment. That commonality reduces the chance of a machine being stranded because only the original display engineer knew the interface, and it keeps spares simple because one firmware image covers the panel. For a product line that may ship for years across many regions, that operational simplicity is a larger part of the total cost than the few lines of interface code, and it is why the conservative bus choice usually wins.
A secondary benefit of keeping the interface simple is that it shortens the qualification loop when a new appliance variant reuses the same front panel. Because the display driver and the test routine already exist, a new model can adopt the panel with almost no display-specific engineering, which speeds the product line and reduces the chance of introducing a fresh interface bug. In a market where appliance makers release frequent minor revisions, that reuse is a quiet but real saving, and it is only available when the bus choice was made for serviceability rather than for a headline speed that the application never uses.
Choose the appliance display bus from the controller's pins and the cable run, and favour the one your field team can service. At 128x80, SPI and I2C are both more than enough.
Sources
Frequently asked questions
SPI or I2C for a coffee machine display?
Whichever fits the board: SPI for a short run with free pins, I2C for a crowded controller with a spare address. Both are ample for 128x80.
Is a faster interface worth it?
No. The readout updates are small and infrequent, so speed is not the constraint. A simpler, serviceable bus reduces risk more than bandwidth helps.
Why offer both buses on one panel?
It lets the layout follow the controller instead of forcing the controller to follow the display, and it keeps the production and service path flexible.
Does the bus affect power much?
Only marginally. The larger power terms are the panel content and idle state; the bus is a minor contributor, though a shared I2C bus can simplify low-power peripheral management.
